ENC-G1320EXE
- Cooling power:1150/1300W
- Voltage:Single-phase AC200~240V
- Installation method:Ceiling-mount
- Dimensions:H448×W710×D370mm
- Weight:44kg

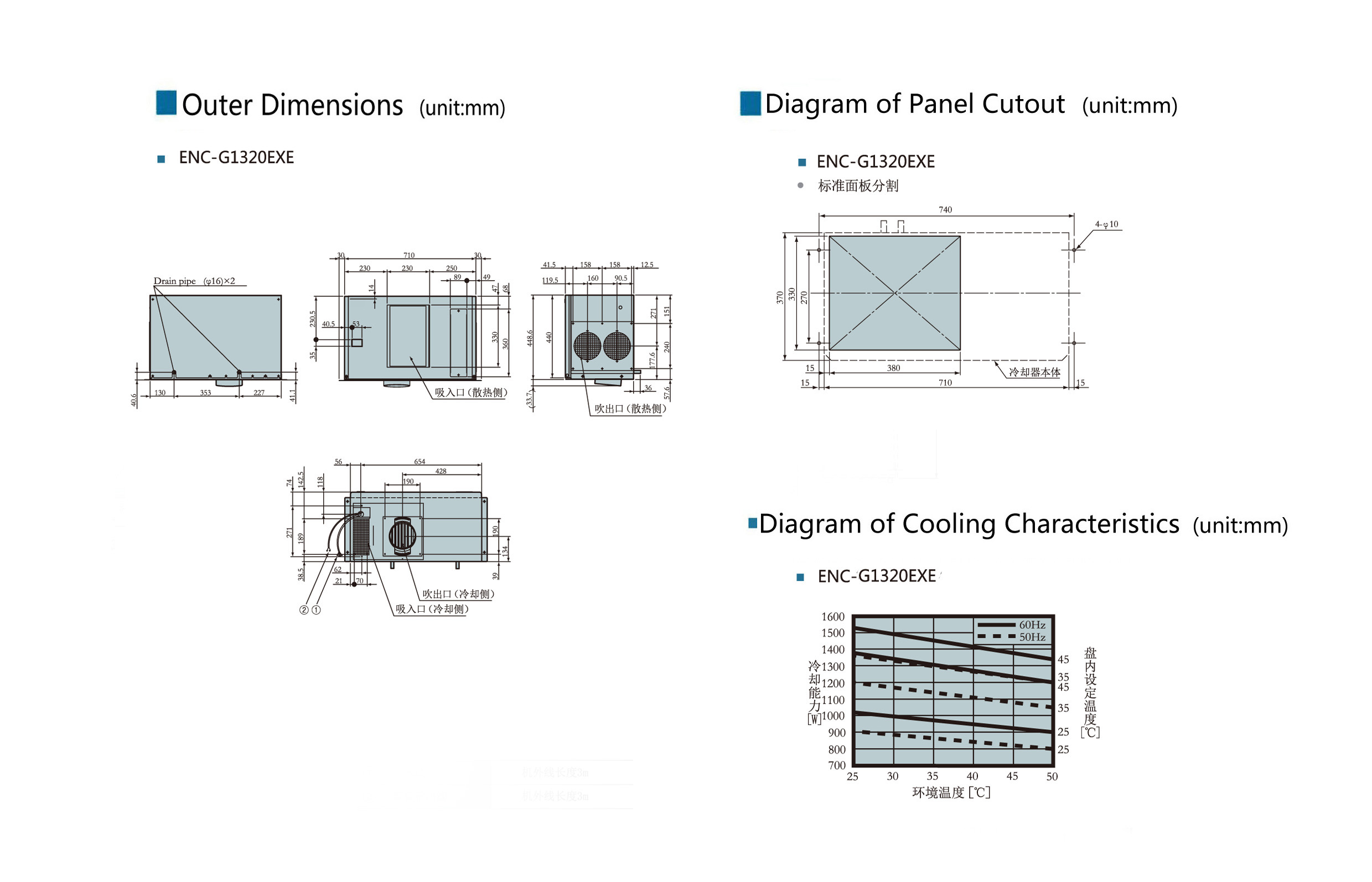

Specifications Installing the dimensional
| ENC-G1320EXE | (50Hz) | ||||||||
| Model | ENC-G1320EXE | ||||||||
| Performance | Cooling capacity (W) | 1150/1300 | |||||||
| Setting temperature range (℃) | 25～45 | ||||||||
| Use Area temperature (℃) | 20～50 | ||||||||
| Use Area humidity (%RH) | 10～85(No condensation) | ||||||||
| External | External dimensions (H×W×D)(mm) | 448 × 710 × 370 | |||||||
| Weight (kg) | 44 | ||||||||
| Coating color | Munsell 5Y 7/1 Equivalent color of light beige | ||||||||
| Power Supply | Rated voltage (V) | Single-phase AC200～240V | |||||||
| Consumption current | Rating (A) | 3.3/3.4 | |||||||
| MAX (A) | 4.0/4.4 | ||||||||
| Starting current (A) | 12.7/11.6 | ||||||||
| Power consumption | Rating (W) | 590/680 | |||||||
| MAX (W) | 740/870 | ||||||||
| Protection | Vibration resistance | 5Hz frequency 20mm total amplitude | |||||||
| Dust & Water protection grade | IP54 Equivalent to internal circulation toute | ||||||||
| Applied Standard | Low voltage directive：EN60335-1 EN60335-2-40/EMC directive：EN64000-6-2 EN61000-6-4 | ||||||||
| Coolant | R-134a | ||||||||
| Noise (dB) | Approx.65/68 | ||||||||
| External Output | Alarm output(a contact:No-voitage resistive load 250V 2A) | ||||||||
| Display | Panel internal temperature/Eror code LED,RUN LED | ||||||||
| Environmental Response | RoHS | ||||||||
Notes：Cooling capacity: the related value when the ambient temperature is 35℃ and the panel intelal temperature is 35℃. (Measurement condition: simple indoor side air enthalpy testing method based on JIS-C-9612)
Rated value：35℃ ambient temperature,ambient humidity RH 40%.
MAX value：Ambient temperature at the time of use is the maximum allowable ambient temperature,when ambient humidity at the time of use is RH 40%.
Please read the instruction carefully before useing and use it correctly.
