ENC-AR2200EX

Cooling power:1900/2200
Voltage:Single-phase AC 200V
Installation method:Ceiling-mount
Dimensions:H447×W650×D400mm
Weight:48kg

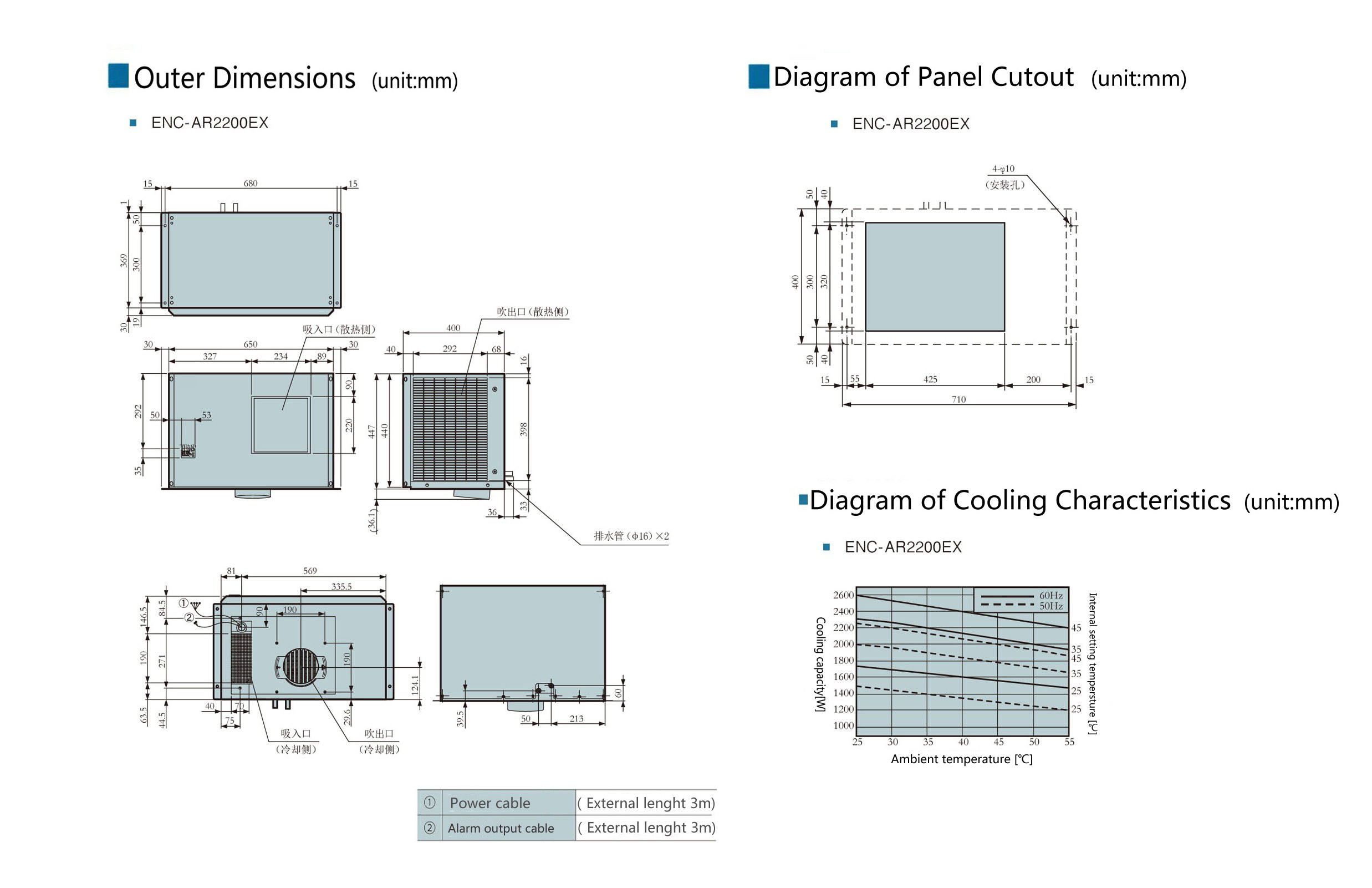

Specifications Installing the dimensional

       ENC-AR2200EX    (50/60Hz)
Model   ENC-AR2200EX
Performance Cooling capacity         (W) 1900/2200
Setting temperature range (℃) 25~45
Use Area temperature     (℃) 20~55
Use Area humidity       (%RH) 10~85(No condensation)
External External dimensions (H×W×D)(mm) 447 × 650 × 400
Weight                  (kg) 48
Coating color Munsell 5Y 7/1 Equivalent color of light beige
Power Supply Rated voltage            (V) Single-phase   AC200V
Consumption current  Rating      (A) 3.3/3.2
 MAX         (A)        4.7/4.9
Starting current         (A) 27/25
Power consumption  Rating      (W) 850/1050
 MAX         (W)        1050/1250
Protection Vibration resistance Total amplitude:20mm,Frequency:5Hz
Dust and drip protection Approx.IP54(Internal circulation path)
 Applied Standard Low voltage directive:EN60335-1 EN60335-2-40/EMC directive:EN64000-6-2 EN61000-6-4
 Coolant R-134a 575g
 Noise                               (dB) Approx.70/71
 External Output Alarm output(a contact:No-voitage resistive load 250V 2A)
 Display Panel internal temperature/Eror code LED,RUN LED
 Environmental Response RoHS Directive

Notes:Cooling capacity: the related value when the ambient temperature is 35 and the panel intelal temperature is 35. (Measurement condition: simple indoor side air enthalpy testing method based on JIS-C-9612)

Rated value35ambient temperature,ambient humidity RH 40%.

MAX valueAmbient temperature at the time of use is the maximum allowable ambient temperature,when ambient humidity at the time of use is RH 40%.

Please read the instruction carefully before useing and use it correctly.
