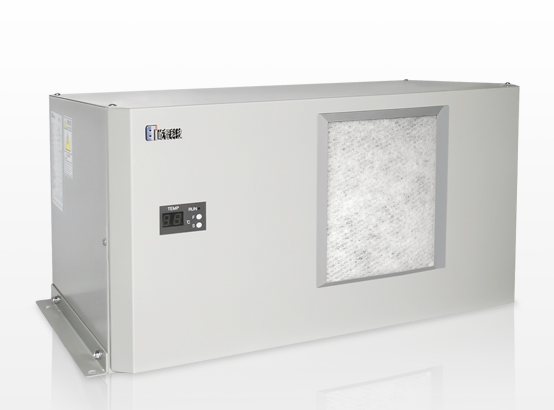

ENC-A1120EX

Cooling power:950/1100W
Voltage:Single-phase AC200V
Installation method:Ceiling-mount
Dimensions:H318×W600×D353mm
Weight:27kg

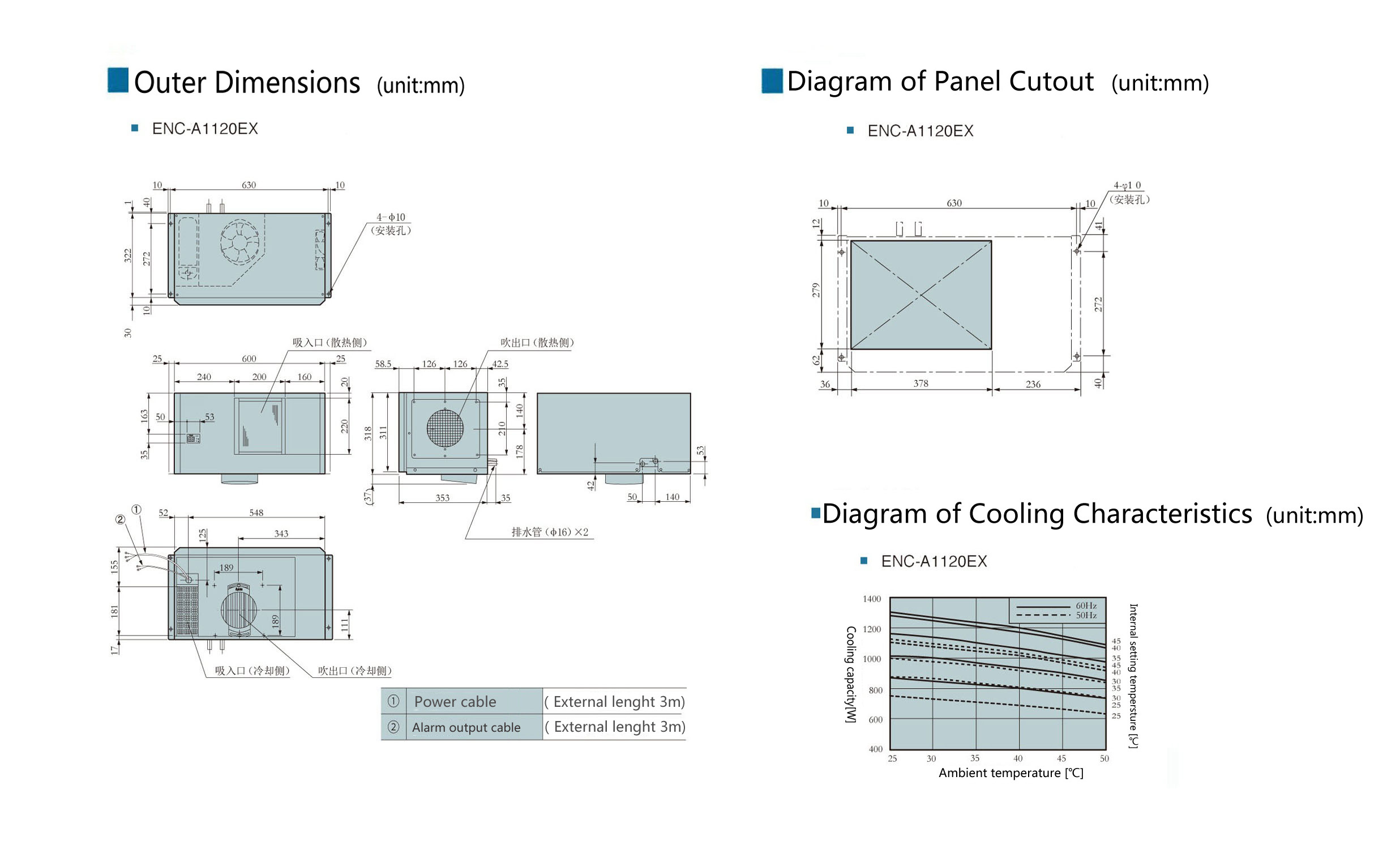

Specifications Installing the dimensional

ENC-A1120EX (50/60Hz)
Model ENC-A1120EX
Performance Cooling capacity         (W) 950/1100
Setting temperature range(℃) 25~45
Use Area temperature     (℃) 20~50
Use Area humidity       (%RH) 10~85(No condensation)
External External dimensions (H×W×D)(mm) 318 × 600 × 353
Weight                  (kg) 27
Coating color Munsell 5Y 7/1 Equivalent color of light beige
Power Supply Rated voltage            (V) Single-phase  AC200V
Consumption current Rating      (A) 2.7/2.4
MAX         (A) 3.2/3.3
Starting current         (A) 7.5/7.1
Power consumption Rating      (W) 440/470
MAX         (W) 570/630
Protection Vibration resistance Total amplitude:20mm,Frequency:5Hz
Dust and drip protection Approx.IP54(Internal circulation path)
Applied Standard Low voltage directive:EN60335-1 EN60335-2-40/EMC directive:EN64000-6-2 EN61000-6-4
Coolant R-134a 240g
Noise                               (dB) Approx.60/65
External Output Alarm output(a contact:No-voitage resistive load 250V 2A)
Display Panel internal temperature/Eror code LED,RUN LED
Environmental Response RoHS Directive


Notes:Cooling capacity: the related value when the ambient temperature is 35 and the panel intelal temperature is 35. (Measurement condition: simple indoor side air enthalpy testing method based on JIS-C-9612)

Rated value35ambient temperature,ambient humidity RH 40%.

MAX valueAmbient temperature at the time of use is the maximum allowable ambient temperature,when ambient humidity at the time of use is RH 40%.

Please read the instruction carefully before useing and use it correctly.
