ENC-GS600EX-50
- Cooling power:600W
- Voltage:Single-phase AC 220~240V
- Installation method:Ceiling-mount
- Dimensions:H332×W550×D270mm
- Weight:22kg

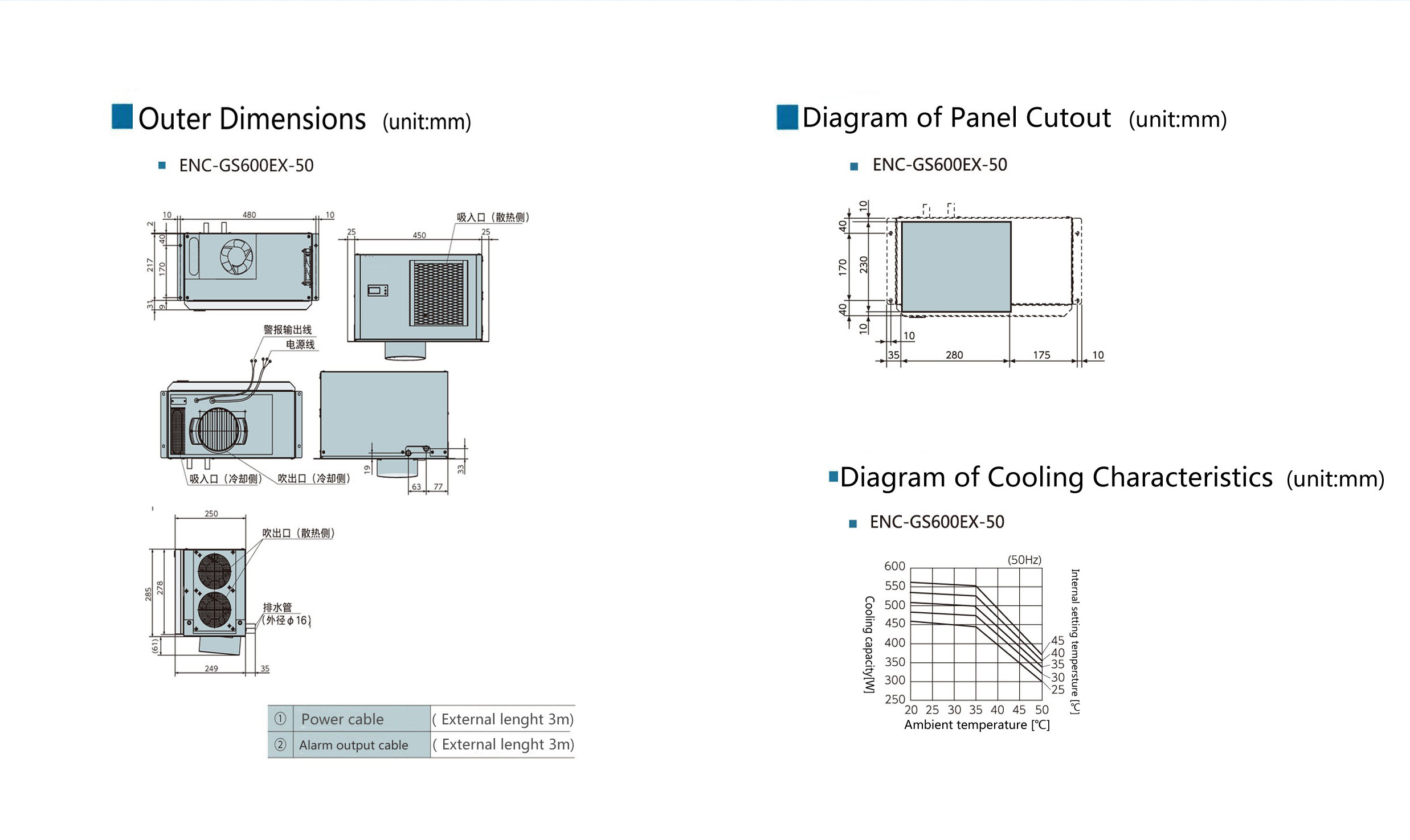

Specifications Installing the dimensional
ENC-GS600EX-50 | (50Hz) | ||||||||
型 号 | ENC-GS600EX-50 | ||||||||
Performance | Cooling capacity (W) | 600 | |||||||
Settingtemperature range (℃) | 25~45 | ||||||||
Use Area temperature (℃) | 20~50 | ||||||||
Use Area humidity (%RH) | 10~85(No condensation) | ||||||||
External | External dimensions (H×W×D)(mm) | 332 × 550 × 270 | |||||||
Weight (kg) | 22 | ||||||||
Coating color | Munsell 5Y 7/1 Equivalent color of light beige | ||||||||
Power Supply | Rated voltage (V) | Single-phase AC220~240V | |||||||
Consumption current | Rating (A) | 1.6 | |||||||
MAX (A) | 2.3 | ||||||||
Starting current (A) | 4.3 | ||||||||
Power consumption | Rating (W) | 350 | |||||||
MAX (W) | 420 | ||||||||
Protection | Vibration resistance | 5Hz frequency 20mm total amplitude | |||||||
Dust & Water protection grade | IP54 Equivalent to internal circulation toute | ||||||||
Coolant | R-134a 120g | ||||||||
Noise (dB) | Approx.63 | ||||||||
External Output | Alarm output(a contact:No-voitage resistive load 250V 2A) | ||||||||
Display | Panel internal temperature/Eror code LED,RUN LED | ||||||||
Regulatroy Compliance | CCC | ||||||||
Environmental Response | RoHS |
Notes:Cooling Capacity: Rated capacity value when external temperature is 35℃,intelal temperature is 35℃.(Measurement condition:JIS-C-9612 air enthalpy method)
Ambient humidity / ambient temperature is not meant to satisfy all conditions in temperatuer and hunidity.
MAX Value:Ambient temperature at the time of use is the maximum allowable ambient temperature,when ambient humidity at the time of use is RH 40%.
Noise Resietance: Required for CE marking.
Please read instructions carefully before use,please use properly.
